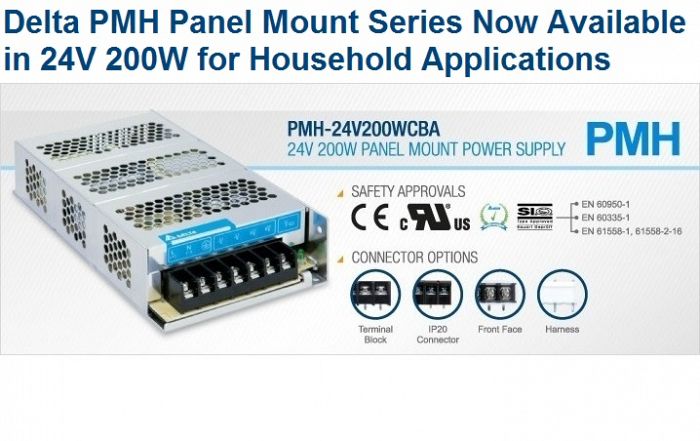

Delta Electronics extends its PMH panel mount power supply series with a higher maximum output power at 24V 200W. The product comes with several connector options consisting of Terminal Block, IP20, Front Face and Harness connectors. Household appliance approvals IEC/EN 60335-1, IEC/EN 61558-1 and IEC/EN 61558-2-16.

The PMH-24V200WCBA provides universal input from 85Vac to 264Vac and high efficiency of > 91.5% @ 230Vac in a full corrosion resistant aluminium body. The highly efficient convection cooling construction can operate between -30 C to 70 C. The PMH series is specifically designed for household electrical appliances with safety approvals including IEC/EN 60335-1 and IEC/EN 61558-2-16 as well as IEC/EN/UL 60950-1. In addition, the product meets the EMC approvals to EN 55014-1 / EN 55014-2 for household appliances and EN 61000-6-1 / EN 61000-6-3 for residential environment without extra EMI filter required.

Highlights & features

Universal AC input voltageFull power from -20 C to +50 C operation at operating altitude 5000m. Full corrosion resistant aluminium casing. High MTBF > 700,000 hrs as per Telcordia SR-332. Versatile connector options: IP20, Front Face and Harness connectors
