Delta LNV Wide Input LED Drivers

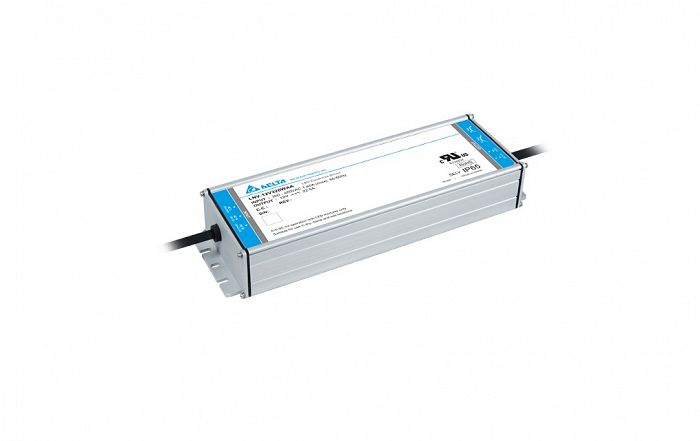

LNV-12V320WAAA
Designed for single phase (for L – N) or two phase (for L – L) wide input 180-528Vac. Up to 94.0% efficiency. 6kV common mode & 4kV differential mode surge immunity. Active PFC. Meets IEC/EN 61000-3-2, Class C. Adjustable voltage & current; dimming options available. IP65 or IP67 options for indoor and outdoor applications.
Main specifications lnV-12v320waaA:
Input Voltage Range:180-528Vac
Input Frequency Range: 47-63Hz
Nominal Nominal Output Voltage: 12V
Output Voltage Adjustment Range: 10.8-13.5V
Output Current Adjustment Range: 11.25- 22.5A
Output Current: 22.5A
Output Power: 270W
Dimensions: 262 x 90 x 43.8 mm (10.31" x 3.54" x 1.72")
Unit Weight: 1.19 kg (2.62 lb)
