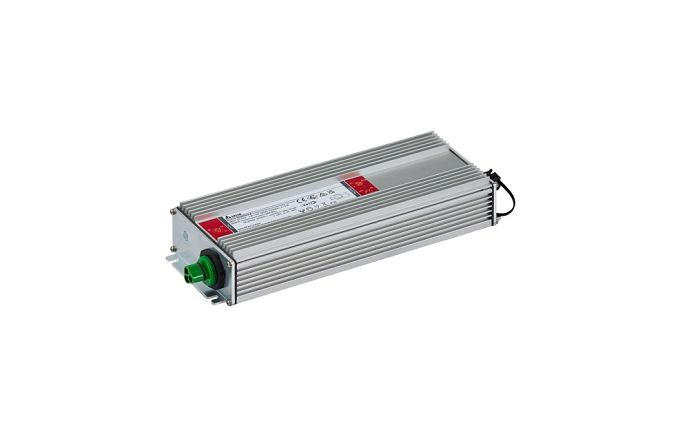

EUCO Arena Sport
EUCO-600200GDA
Output power: max 600W. Wide Input voltage: 198-440V AC. Ultra high Efficiency 97.5%. Control method: compliant with DALI-2 Part 251/252/253. Programmable output current range 700-2000 mA. Low current ripple (typ.1%) and flicker free for HDTV broadcasting. High-accuracy integrated power metering. Constant Light Output (CLO) function. Autonomous dimming via Midnight Centric Timer. Minimum dimming level 0.1%. Input surge protection: DM 6kV; CM 10kV. Max signal control distance 300 meters. Reliable IP66 input/output connectors. Afterglow effect free.
Main specifications EUCO-600200GdA:
Input Voltage Range: 198-440Vac
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 200 - 550V
Output Current: 2A
Output Power: 600W
Dimensions (L x W x D) : 315 x 100 x 49 mm (12.40” x 3.94” x 1.93”)
Unit Weight : 2.2 kg (4.85 lb)
