EUCO Arena Sport

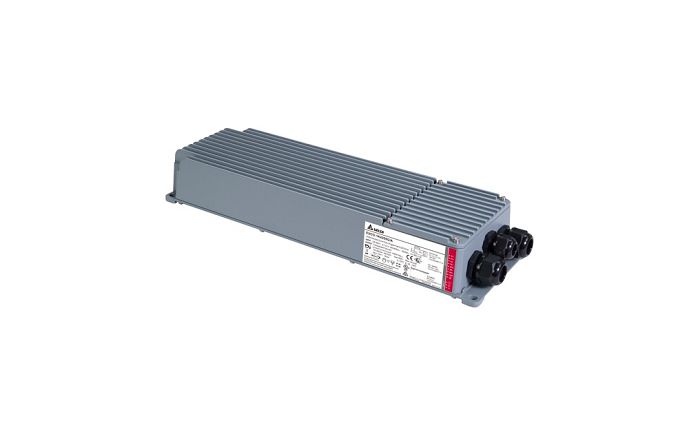

EUCO-1K4200GDA
2 independent programmable output channels. Max. output power 1400 W (2x700 W/channel). Wide input voltage: 198-440 Vac. Ultra high efficiency (97.9% Typ.). Programmable output current range 700-2000 mA. Control method: DMX/RDM. Configurable single channel or multi-channel by DMX/RDM. Wide dimming range 0.1-100%Low current ripple (1%). Flicker free for HDTV broadcasting. After-glow effect free. High-accuracy integrated power metering. Constant Lumen Output (CLO). Smart Timer Dimming (STD). IP66 & IK08 approval enclosure. Max remote distance 300 meters.
Main specifications EUCO-1K4200GDA:
Input Voltage Range: 198-440Vac
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 150 - 550V
Output Current: 2A
Output Power: 1400W
Dimensions (L x W x D) : 500 x 152 x 77 mm (19.69” x 5.98” x 3.03”)
Unit Weight : 5.4 kg (11.90 lb)
