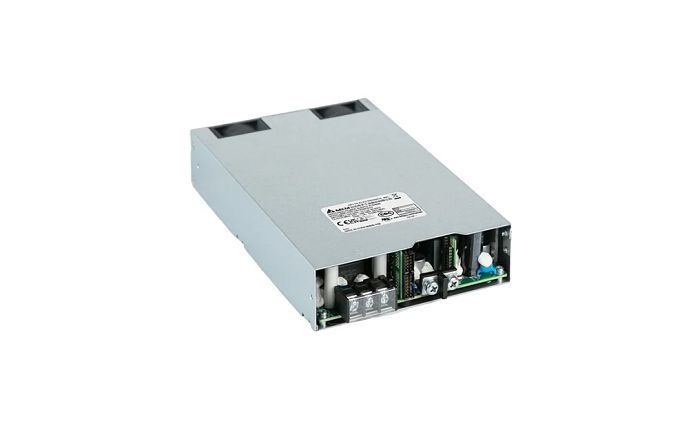

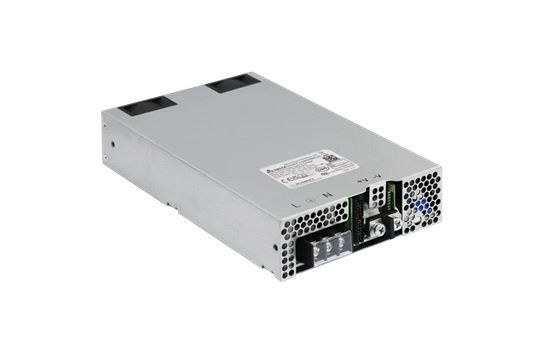

Delta PMS series
PMS-24V1K2W1BTD
Universal AC input voltage. Up to 1,200 Watt in 8.03" x 5" x 1.59" package. Peak power supported. Full power up to 50°C ambient. Option for constant current. Up to 500 KHrs MTBF. 5 V / 2 A standby output. Active current sharing. Conformal coating. Class B Conducted and Radiated EMI. Remote On/Off and Power Good Signal. PMBus Ver 1.3 supported. Intelligent fan speed control. Optional USB/RS232/RS485 adapter for communication. Compliance to SEMI F47 @ 200Vac.
Main specifications PMS-24V1K2W1BTD:
Input Voltage Range: 85-264 Vac
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 24V
Output Voltage Adjustment Range: 24-28 Vdc
Nominal Output Current: 0-50A
Output Power: 1200W
Dimensions (L x W x D) : 204 x 127 x 40.5 mm (8.03” x 5.00” x 1.59”)
Unit Weight : 1.5 kg (3.31 lb)
