Delta PMS series

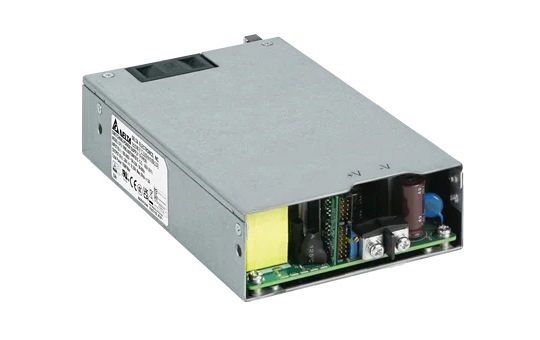

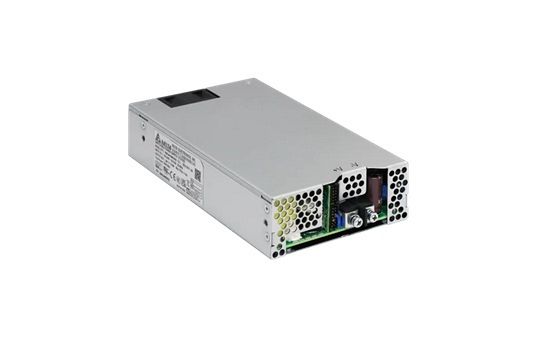

PMS-24V750W1BTD
Universal AC input voltage. Up to 750 Watt in 7" x 4" x 1.575" package. Peak power supported. Full power up to 50°C ambient. Option for constant current. Up to 500 Khrs MTBF. 5 V / 2 A standby output. Active current sharing. Conformal coating. Class B Conducted and Radiated EMI. Remote On/Off and Power Good Signal. PMBus Ver 1.3 supported. Intelligent fan speed control. Optional USB/RS232/RS485 adapter for communication. Compliance to SEMI F47 @ 200Vac.
Main specifications PMS-24V750W1BTD:
Input Voltage Range: 85-264 Vac
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 24V
Output Voltage Adjustment Range: 24-28 Vdc
Nominal Output Current: 0-31.25A
Output Power: 750W
Dimensions (L x W x D) : 177.8 x 101.6 x 40 mm (7.00” x 4.00” x 1.57”)
Unit Weight : 1.1 kg (2.43 lb)
