Delta PMR series

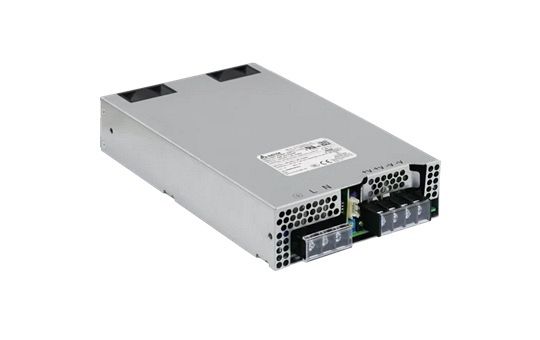

PMR-24V1K5W1BTB
Universal AC input voltage. Up to 1,500 Watt in 8.03" x 5" x 1.59" Package. Up to 23.5 W/inch³ Power Density. Peak power supported. Full Power up to 50°C Ambient. Up to 500 KHrs MTBF. 5 V / 2 A Standby Output. Active Current Sharing. Conformal Coating. Class B Conducted and Radiated EMI. Remote On/Off control. Analog Voltage Trimming. Intelligent Fan Speed Control. Compliance to SEMI F47 @ 200Vac.
Main specifications PMR-24V1K5W1BTB:
Input Voltage Range: 90-264 Vac
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 24V
Output Voltage Adjustment Range: 24-28 Vdc
Nominal Output Current: 62.5A
Output Power: 1500W
Dimensions (L x W x D) : 204 x 127 x 40.5 mm (8.03” x 5.00” x 1.59”)
Unit Weight : 1.5 kg (3.31 lb)
