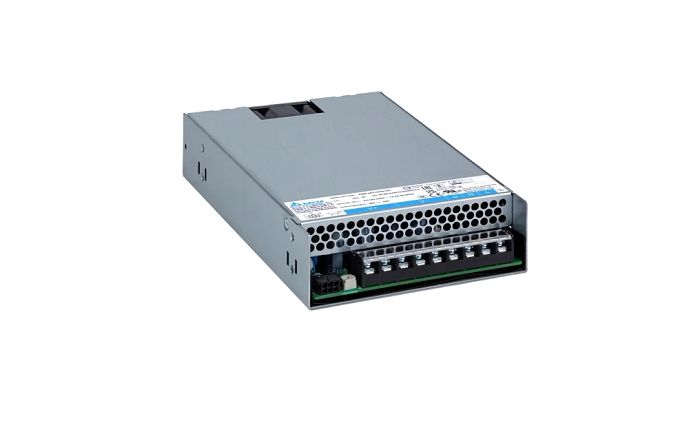

Delta PMR series
PMR-48V1K0W1BT
Built-in active PFC and conforms to harmonic current IEC/EN 61000-3-2, Class A. Active current sharing up to 4 units in parallel. Built-in Remote ON/OFF and Remote Sense. Compact 1U low-profile design. Terminal block cover and conformal coating available. Certified for industrial and household applications (IEC/EN 62368-1, 60335-1, 61558-1, 61558-2-16). Over voltage category III (OVC III). Wide operating temp -40°C ~70°C.
Main specifications PMR-48V1K0W1BT:
Input Voltage Range: 90-264 Vac
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 48V
Output Voltage Adjustment Range: 48-55 Vdc
Nominal Output Current: 21A
Output Power: 1000W
Dimensions (L x W x D) : 225 x 124 x 41 mm (8.86” x 4.88” x 1.61”)
Unit Weight : 1.45 kg (3.20 lb)
