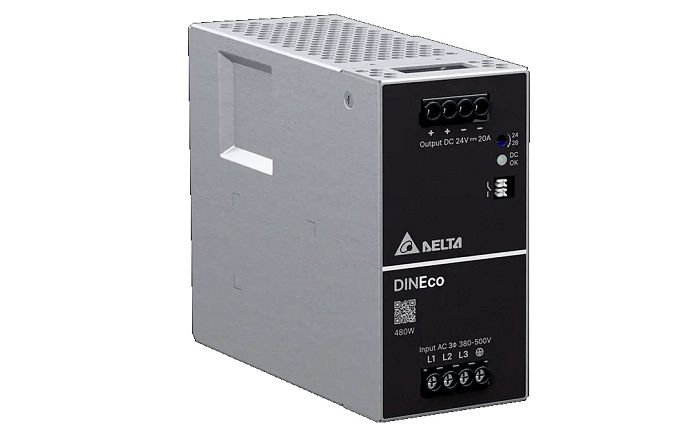

Delta DIN Eco Series
DRL-24V480W3EN
3-Phase AC input from 340-575 Vac. Optional 3ENA models: 600 Vac with conformal coating. Slim and compact size design. Wide operating temperature from -40°C to +70°C. Power good LED indicator. Surge protection capacity 4 kV / 2 kV. Compliant with SEMI F47. IEC/EN/UL 62368-1 and IEC/UL 61010-1 certified.
Main specifications DRL-24V480W3EN:
Input Voltage Range: 3 x 340-575 Vac (3-Phase) or 2 x 340-575 Vac (2-Phase)
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 24V
Output Voltage Adjustment Range: 24-28 Vdc
Nominal Output Current: 20A
Output Power: 480W
Dimensions (L x W x D) : 123.6 x 60 x 142.6 mm (4.87” x 2.36” x 5.61”)
Unit Weight : 0.95 kg (2.09 lb)
