Delta PJ series

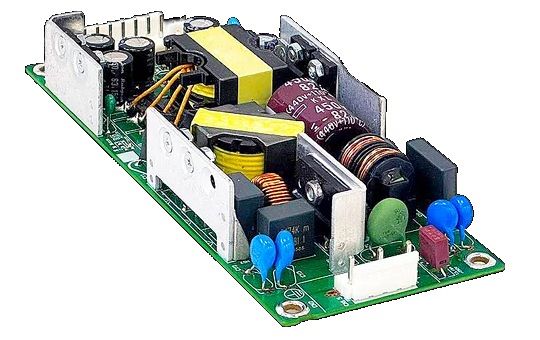

PJ-24V100WDRA
200% Power Boost. Comply with JAPAN DEN-AN. Built-in Remote ON/OFF. Low profile design. Low Inrush Current / Low Leakage Current. High efficiency and power factor to conserve energy. Conforms to harmonic current IEC/EN/BS EN 61000-3-2, Class A. Conformal coating on PCBA to protect against chemical and dust pollutants. Versatile configuration options: Open Frame & Enclosed.
Main specifications PJ-24V100WDRA:
Input Voltage Range: 85-264Vac
Input Frequency Range: 47-63Hz
Output Current: 4.3A
Output Voltage: 24V
Output Voltage Adjustment Range: 21.6-26.4 Vdc
Output Power: 103.2W
Dimensions (LxWxD): Open frame - 155 x 62 x 27 mm (6.10" x 2.44" x 1.06")
Enclosed - 185 x 72 x 45 mm (7.28" x 2.83" x 1.77")
Unit Weight: Open frame - 0.22 kg (0.49 lb)
Enclosed - 0.38 kg (0.84 lb)
