Delta PMT2 series

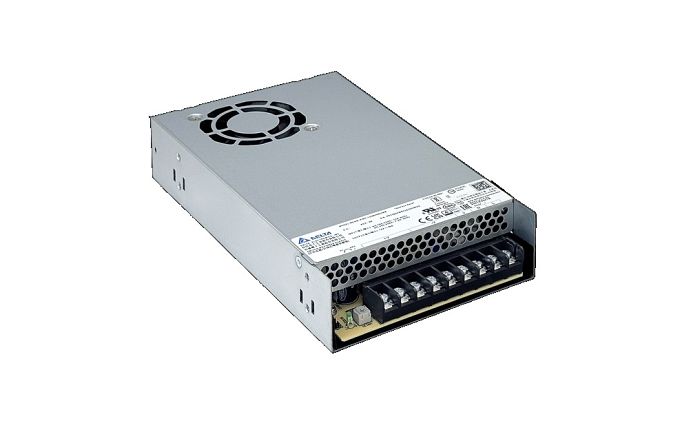

PMT-48V600W2BR
AC input voltage range selectable by switch (90-132Vac, 180-264Vac). 300 Vac input surge resilience (5s). Built-in 200% peak power supported. Low profile design: 41mm height. Certified to IEC/EN 62368-1. Wide operating temp -40°C ~ 70°C.
Main specifications PMT-48V600W2BR:
Nominal Input Voltage: 100-120Vac, 200-240Vac (Selectable by Switch)
Input Frequency Range: 47-63Hz
Nominal Output Voltage: 48V
Output Voltage Adjustment Range: 43.2-54Vdc
Output Current: 12.5A
Output Power: 600W
Dimensions: 225 x 124 x 41 mm (8.86” x 4.88” x 1.61”)
Unit Weight: 1.10 kg (2.43 lb)
