Delta DIN Eco Series

  • 3-phase AC input from 340-575 Vac
  • Optional 3ENA models: 600 Vac with conformal coating
  • Slim and compact design
  • Built-in LED indicator and DC OK relay (available on models over 480W)
  • Surge protection capacity 4kV / 2kV
  • Wide operating temperature -40°C ~ 70°C
  • Compliant with SEMI F47
  • IEC/EN/UL 62368-1/61010-1 certified



1

Model Name Phase PFC Output Voltage Output Current Output Power Input Voltage Range Dimensions (L x W x H) Download datasheet
DRL-24V120W3EN Phase I 24V 5A 120W 3 x 340-575 Vac (3-Phase) or 2 x 340-575 Vac (2-Phase) 123.6 x 40 x 116.8 mm
DRL-24V240W3EN Phase I 24V 10A 240W 3 x 340-575 Vac (3-Phase) or 2 x 340-575 Vac (2-Phase) 123.6 x 56 x 116.8 mm

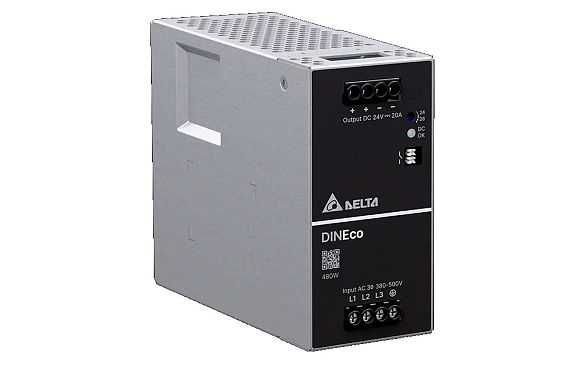

DRL-24V480W3EN Phase I 24V 20A 480W 3 x 340-575 Vac (3-Phase) or 2 x 340-575 Vac (2-Phase) 123.6 x 60 x 142.6 mm
DRL-24V960W3EN Phase I 24V 40A 960W 3 x 340-575 Vac (3-Phase) or 2 x 340-575 Vac (2-Phase) 123.6 x 110 x 142.6 mm
DRL-48V120W3EN Phase I 48V 2.5A 120W 3 x 340-575 Vac (3-Phase) or 2 x 340-575 Vac (2-Phase) 123.6 x 40 x 116.8 mm
DRL-48V240W3EN Phase I 48V 5A 240W 3 x 340-575 Vac (3-Phase) or 2 x 340-575 Vac (2-Phase) 123.6 x 56 x 116.8 mm
DRL-48V480W3EN Phase I 48V 10A 480W 3 x 340-575 Vac (3-Phase) or 2 x 340-575 Vac (2-Phase) 123.6 x 60 x 142.6 mm
DRL-48V960W3EN Phase I 48V 20A 960W 3 x 340-575 Vac (3-Phase) or 2 x 340-575 Vac (2-Phase) 123.6 x 110 x 142.6 mm
DRL-24V120W3EN
DRL-24V240W3EN
DRL-24V480W3EN
DRL-24V960W3EN
DRL-48V120W3EN
DRL-48V240W3EN
DRL-48V480W3EN
DRL-48V960W3EN
