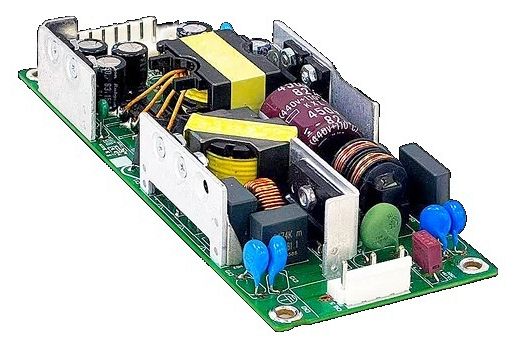

Delta PJ series

  • 200% power boost for 10 secs.
  • Compliant with Japan PSE (DENAN) regulations
  • Built-in remote ON/OFF
  • Low profile design
  • Low inrush current / low leakage current
  • High efficiency and PF to conserve energy
  • Complies with IEC/EN 61000-3-2, Class A for harmonic current emissions
  • Robust conformal-coated PCBAs protect against dust and chemical contaminants
  • Available in open frame and enclosed configurations



 pj 1 approval mark

Model Name Phase PFC Output Voltage Output Current Output Power Input Voltage Range Dimensions (L x W x H) Download datasheet
PJ-12V100WDRA Phase I 12V 8.5A 102W 85-264Vac Open frame - 155 x 62 x 27 mm, Enclosed - 185 x 72 x 45 mm
PJ-12V150WDRA Phase I 12V 12.5A 150W 85-264Vac Open frame - 160 x 75 x 27 mm, Enclosed - 188 x 85 x 47 mm
PJ-24V100WDRA Phase I 24V 4.3A 103.2W 85-264Vac Open frame - 155 x 62 x 27 mm, Enclosed - 185 x 72 x 45 mm
PJ-24V150WDRA Phase I 24V 6.3A 151.2W 85-264Vac Open frame - 160 x 75 x 27 mm, Enclosed - 188 x 85 x 47 mm
PJ-48V100WDRA Phase I 48V 2.1A 100.8W 85-264Vac Open frame - 155 x 62 x 27 mm, Enclosed - 185 x 72 x 45 mm
PJ-48V150WDRA Phase I 48V 3.2A 153.6W 85-264Vac Open frame - 160 x 75 x 27 mm, Enclosed - 188 x 85 x 47 mm
PJ-12V100WDRA
PJ-12V150WDRA
PJ-24V100WDRA
PJ-24V150WDRA
PJ-48V100WDRA
PJ-48V150WDRA
